StarTech.com 1-Port Serial to Ethernet Adapter, 802.3af PoE Powered Serial Device Server, Wall/DIN Rail, LAN to DB9 Converter, TAA

This single port PoE serial-to-IP converter enables remote control of different RS232 devices over an IP network. Compliant with the 802.3af PoE standard, the RJ45 LAN to DB9 adapter facilitates seamless integration of data and power supply to the unit through a single Cat5/5e/6/6a copper cable. The RS232 to IP is highly customizable with a Windows-based Device Server Manager (DSM) for creating virtual COM ports, facilitating seamless migration of existing serial applications. The compact design (1.8x1x3.2in) and robust full-metal enclosure make it ideal for harsh environments where space is at a premium. It includes all necessary hardware for wall and DIN rail mounting. Choose between dual power options, M-size barrel connector and Power over Ethernet (PoE), that provide maximum installation flexibility for a variety of scenarios. The converter features a single RJ45 10/100 Mbps Ethernet port, supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols. Supports Level-4 ESD protection (15kV air/8kV contact) and can supply 5VDC over pin 9 if required.

• SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
• UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
• VERSATILE CONFIGURATIONS: PoE powered converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
• ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter

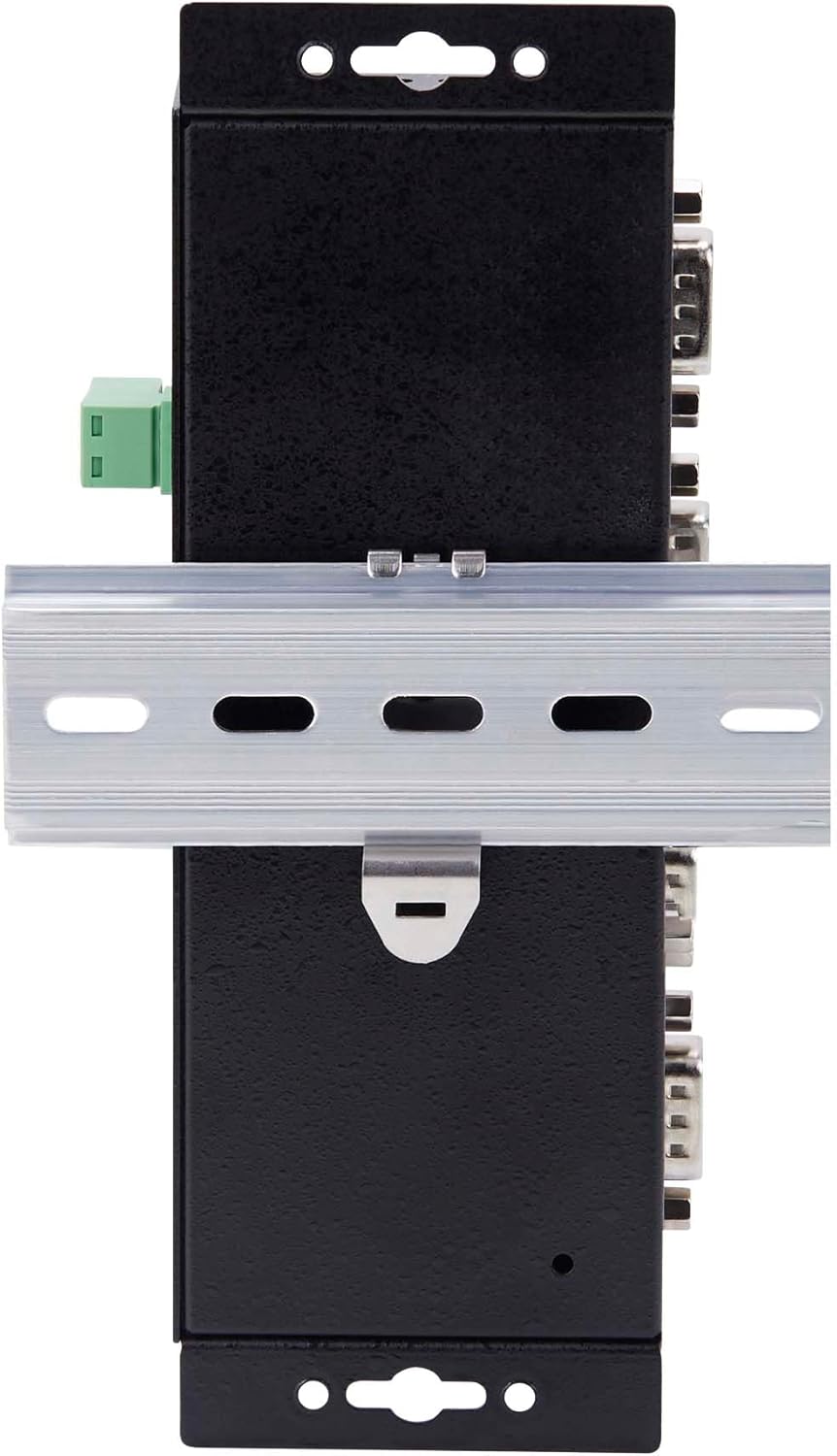

• RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
