South Bend Components Atlas Power Machines ATV/UTV Electric Winch Kit, 750-lb.
4.0 (114 items)
Limited Time SaleUS$59.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215236734 | Release Date | 2026/04/12 | List Price | US$40.00 | Model Number | 215236734 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

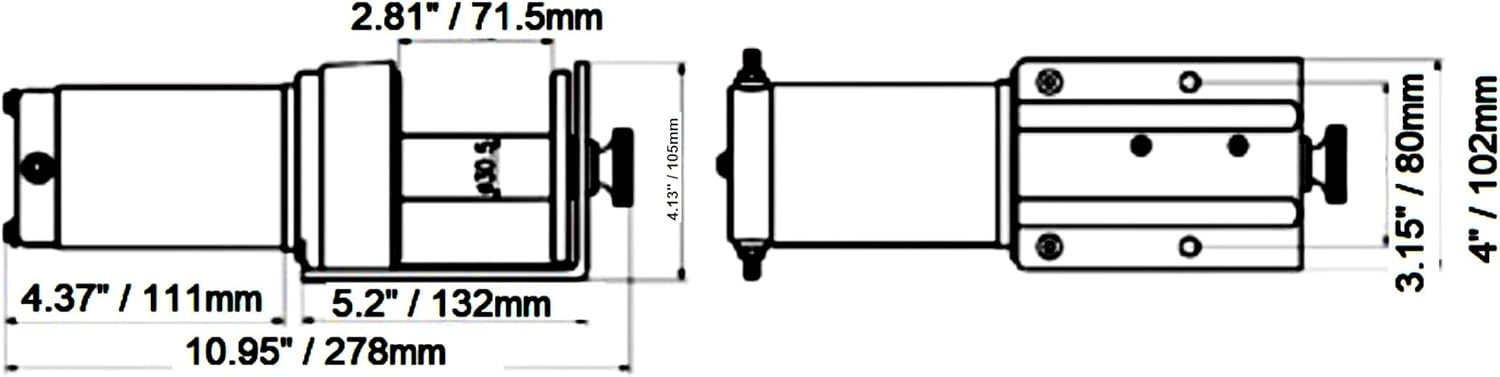

Single- line pull : 750lbs(337kg)Double-line pull: 1500lbs (680kg)Motor: 0.3kw/0.4hp 12V, permanent magnetGear reduction ratio: 153:1Motor cable: 1.36mBattery cable : 1.83mDrum dimension: Φ30mm x 72mmCable: Φ3mm x 15mOverall dimension (L X W X H): 285mm x 105mm x 105mmMounting dimension: Φ8.5mm x 80mmWeight：N.W/G.W:4.5kgs/5kgs
- Heavy duty-sealed contactor with positive load control for power input and output;Powerful motor and three-stage planetary gear system provide faster linear speed and lower ampere traction under load
- South Bend Components Atlas Power Machines winches for portability; outstanding duty cycle
- With a strong and steady pull
| Size | 750 lb |
|---|---|
| Color | 750 lb ATV/UTV Electric Winch |
| Voltage | 12 Volts |
| Wattage | 300 watts |
| Horsepower | 0.4 Horsepower |
| Part Number | SBCAPMEW750-01 |
| Manufacturer | South Bend Components |
| Power Source | DC |
| Item model number | SBCAPMEW750-01 |
| Batteries Included | No |
| Batteries Required | No |
